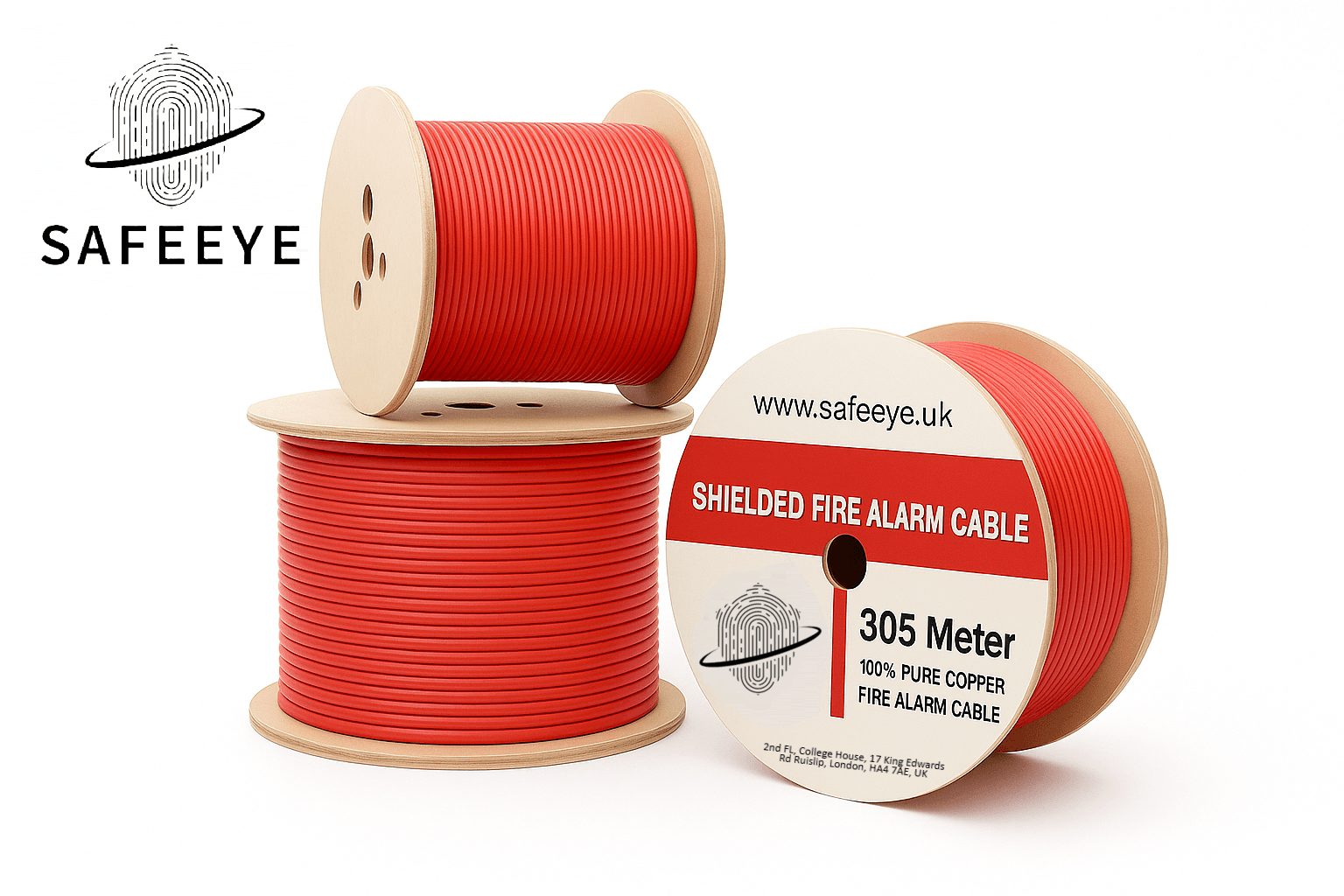

FIRE LSZH 2C1.5 SOLID

Conductor: Made of bare copper, the conductor size is 1.5 mm² with a solid 1×1.38 mm construction, wrapped in a two-layer fire-resistant mica tape for enhanced protection.

Insulation and Shielding: The cable uses LSZH insulation with a diameter of 3.5 mm and thickness of 0.7 mm, available in blue and brown colors. Shielding includes PET polyester tape and aluminum foil with 100% coverage, plus a solid copper drain wire (1×1.38 mm).

Jacket and Construction: The jacket is made from fire-resistant LSZH material, 9.2 mm in diameter and 1.0 mm thick, colored red. The conductor is wrapped with two layers of fire-resistant mica tape, with insulation and jacket both fire-resistant. Available in 100m standard drums or optional 500m drums.

Electrical and Physical Characteristics: The cable has a conductor resistance max of 12.1 Ω/km at 20℃, voltage rating of 300V, and temperature range from -20℃ to +70℃. It is mainly used for fixed installation in fire alarm and emergency lighting circuit equipment.
