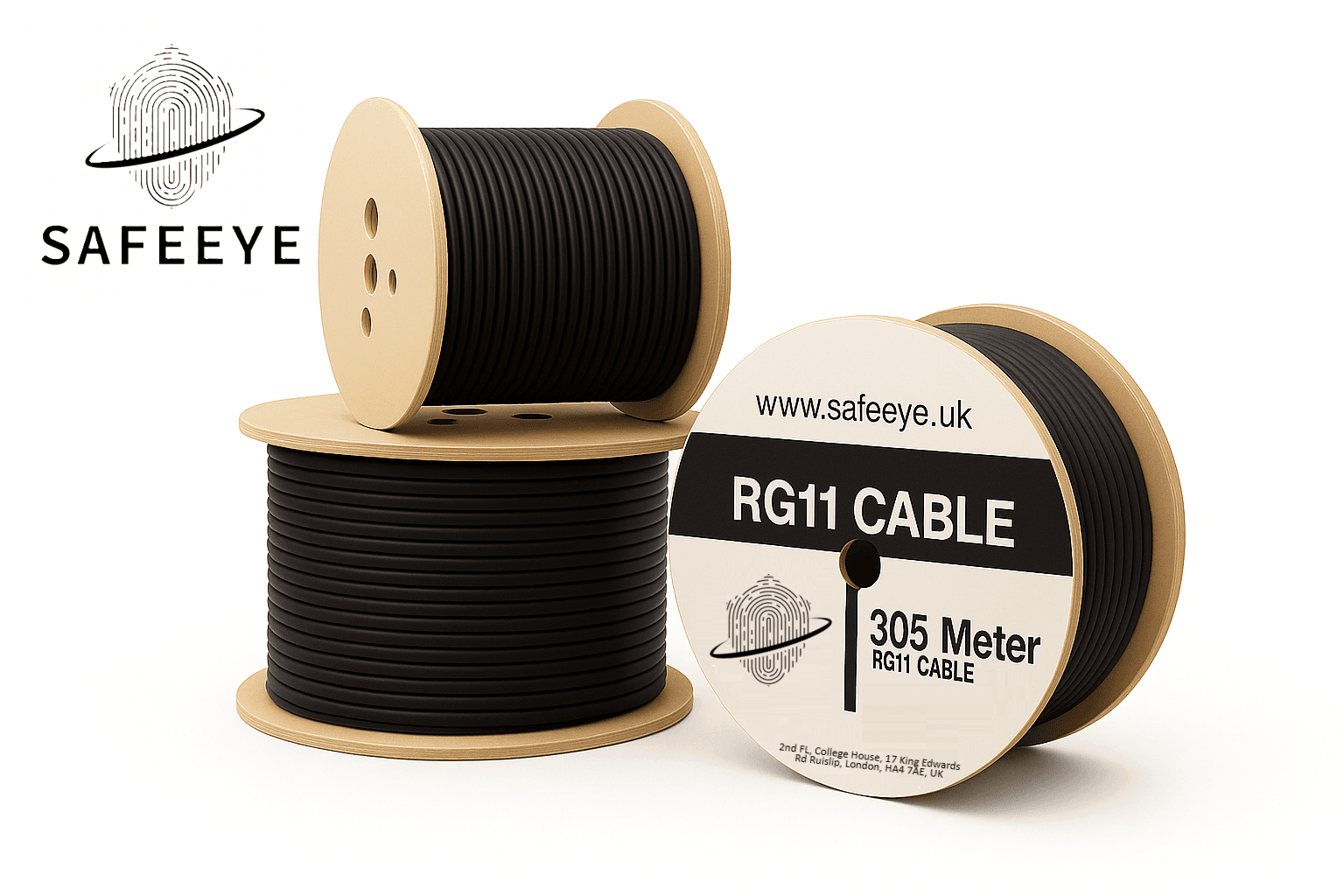

SA-RG11

Conductor: Made of 1.63 mm copper, sized 14 AWG, providing reliable signal conduction.

Insulation and Shielding: The insulation uses foamed PE material with a diameter of 7.11 mm and thickness of 2.74 mm in white color. Shielding includes aluminum foil and 64 strands of 0.12 mm CCA braid for effective signal protection.

Jacket: Constructed from black polyvinyl chloride (PVC) with a thickness of 1.0 mm and an overall cable diameter of 9.8 mm (color optional).

Electrical & Physical Characteristics: The cable has an impedance of 75 ± 2 ohms, capacitance of 52 ± 2 pF/m max, insulation resistance greater than 50,000 MΩ·km, velocity of propagation at 85%, cut-off frequency of 3.0 GHz, and operates between -20℃ and +70℃.

Application: Designed for connecting TVs, satellite TV receivers, CCTV, and audio/video equipment for reliable signal transmission and video reception.
